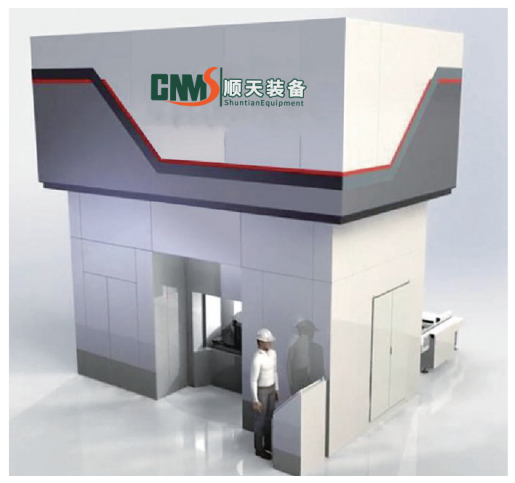

Metal Plate Liquid Forming Machine – Precision, Complexity, and Strength in Every Shape

Unlock the potential of liquid forming technology with our Metal Plate Liquid Forming Machine. Designed to meet the highest standards in metal forming, this machine allows you to create complex, high-precision metal shapes with exceptional strength and consistency. Ideal for industries demanding top-tier quality, such as automotive, aerospace, and industrial manufacturing.

Key Features:

Advanced Liquid Forming Technology
Utilize uniform liquid pressure to shape metal plates into intricate forms with smooth, seamless surfaces and minimal material stress.
High Precision and Consistency
Achieve superior accuracy and repeatability with every cycle, reducing material waste and ensuring consistent quality across production runs.
Enhanced Durability of Formed Parts
Liquid forming minimizes stress points, resulting in stronger, more resilient parts that are less prone to deformation and fatigue.
Versatile Application
Suitable for various metals and complex geometries, this machine supports a wide range of applications across automotive, aerospace, and industrial sectors.
Efficient and Cost-Effective
Reduce production times and costs with a streamlined forming process that minimizes post-processing needs and material waste.

Why Choose Our Metal Plate Liquid Forming Machine?
Our Metal Plate Liquid Forming Machine empowers you to produce high-quality, intricately shaped metal components with ease and efficiency. With a focus on precision, durability, and reliability, this machine is an essential tool for any facility looking to elevate its metal forming capabilities.

The Metal plate liquid forming machine includes a fluid pool and a deep drawing configuration.

Fluid unit plate hydro forming produces shallow parts with open corners, while stretch plate hydro forming is used

for higher parts with closed corners and can accommodate parts up to 15 inches.

The process can create a series of simple or complex geometric shapes from a variety of materials, including

aluminum, steel, stainless steel, titanium, niobium, chromium-nickel-iron, copper, composite materials, etc. flexible

sheet forming machines can replace many different metal forming processes, and these machines can also combine

multiple steps into one operation, and almost eliminate secondary processing such as manual finishing, annealing or

welding.

Most of parts, including stretched parts, are completed in one cycle and no more extra finishing.

High-Precision Liquid Forming

The servo-controlled system provides unmatched precision in the liquid forming process, ensuring uniform thickness and surface quality for bipolar plates.

Energy-Efficient Design

Built with advanced energy-saving technology, this machine reduces operational costs without compromising performance.

User-Friendly Interface

Equipped with an intuitive control panel, the system simplifies operation and enhances productivity.

Versatile Applications

Designed to handle a variety of materials and thicknesses, making it ideal for diverse industrial applications.

About Us

At Shuntian Equipment, we specialize in delivering advanced hydraulic press solutions and production lines tailored for industries such as fuel cells, automotive manufacturing, and industrial applications. With years of experience and a commitment to innovation, we have become a trusted partner for businesses worldwide.

Why Choose Us?

Advanced Technology: Cutting-edge production lines equipped with automation and precision engineering.
Customization: Tailor-made solutions to meet specific industrial needs.
Global Expertise: Serving clients across various industries and countries.
Quality Assurance: Adherence to international standards with rigorous quality control measures.
Reliable Support: Comprehensive after-sales service and technical assistance.

FAQ

1. Who are we?

We are Shuntian Equipment, a leading provider of advanced hydraulic presses, automated production lines, and industrial machinery. With years of experience, we are committed to delivering high-quality, customized solutions to industries worldwide.

2. How can we guarantee quality?

· Strict Quality Control: Each product undergoes multiple layers of testing and inspection.

· Advanced Standards: Adhering to international manufacturing standards.

· Customer Feedback: Continuous improvements based on client input.

3. What can you buy from us?

Our product range includes:

· Hydraulic presses for industrial and manufacturing applications.

· Fully automated production lines for fuel cells and other industries.

· Customized equipment to meet specific requirements.

4. Why should you buy from us and not from other suppliers?

· Tailored Solutions: We customize equipment to perfectly match your needs.

· Competitive Pricing: High-quality machinery at cost-effective rates.

· After-Sales Support: Comprehensive service to ensure your operations run smoothly.

· Proven Expertise: Years of experience with a strong track record of success.

5. What services can we provide?

· Full equipment installation and setup.

· On-site technical training and support.

· Maintenance and repair services.

· Customized machinery design and production.

Contact Us

We’re here to help! For any inquiries, questions, or assistance, feel free to reach out to us through the following channels:

technical parameters

Model Parameters		Unit	TSPS-500	TSPS-600	TSPS-1200	TSPS-1200A	TSPS-2000	TSPS-2500
Forming area		mm	Φ406	Φ609	609*1219	914*1219	914*1981	914*2438
Maximum working pressure		bar	345	345	689	413	413	413
Distance between upper and lower working table		mm	127	127	152	152	152	152
Cycle		S	＜20	＜20	＜20	＜20	＜20	＜20
Dimensions	Length	cm	309	360	665	665	815	914
	Width	mm	106	89	480	502	502	502
	Height	mm	228	223	256	259	279	279
	Total system weight	kg	8164	11,339	61,234	40,823	330,200	381,000
Motor power(about)		KW	7.5	11	15	22	30	40
